Custom made S150 S200 150kW 200kW Computer Room Precision Air Conditioner with Humidification for Data Centers and Telecom Rooms

Name: Custom made S150 S200 150kW 200kW Computer Room Precision Air Conditioner with Humidification for Data Centers and Telecom Rooms
Brand: Hailos
Price: 1 USD

Quality Custom made S150 S200 150kW 200kW Computer Room Precision Air Conditioner with Humidification for Data Centers and Telecom Rooms for sale

Configuration : Custom made

Model Number : S83

MOQ : 1

Delivery Time : 5-8 weeks

Payment Terms : T/T

Cooling capacity : 150kw /200kw

Price : $1

Application : serve room, machine room, telecom , High-capacity technical rooms

Supply Ability : 200 sets /month

Product name : Precision air conditioner

Certification : ISO、CE

Place of Origin : China

Brand Name : Hailos

Packaging Details : wooden cartons

Contact Now

Product Introduction

Custom made S150 and S200 precision air conditioner series is designed for environments requiring controlled temperature and humidity. The two configurations provide cooling capacities of 150kW and 200kW, combined with high airflow, multi-compressor refrigeration, electronic expansion control, PTC electric heating, and wet-film humidification.

The S150 provides an airflow of 32,400m3/h and uses 2 hermetic scroll compressors. The S200 provides an airflow of 42,000m3/h and uses 4 hermetic scroll compressors. Both models support a temperature control range of 18-28C and a humidity control range of 40-75% RH.

The system uses R410A refrigerant, copper-tube aluminum-fin heat exchangers, AC indoor fans, initial-efficiency air filters, and top-discharge outdoor units. The built-in RS485 interface and MODBUS communication protocol support remote control and system integration.

Application Scope

Suitable for project evaluation in:

Computer rooms
Server rooms
Telecom equipment rooms
Network and data-processing rooms
Industrial control rooms
Monitoring rooms
Laboratories requiring controlled temperature and humidity
Technical rooms with high cooling loads

Technical Parameters

Refrigeration, Airflow, and Control

Parameter	S150	S200
Airflow	32,400m3/h	42,000m3/h
Cooling capacity	150kW	200kW
Compressor quantity	2	4
Compressor type	Hermetic scroll compressor	Hermetic scroll compressor
Operating mode	Constant temperature and humidity	Constant temperature and humidity
External static pressure	30-350Pa	30-350Pa
Standard air pressure	200-550Pa	200-550Pa
Power supply	400V, 50Hz	400V, 50Hz
Refrigerant	R410A	R410A
Expansion valve	Electronic expansion valve	Electronic expansion valve
Remote control interface	RS485	RS485
Communication protocol	MODBUS	MODBUS

Temperature, Humidity, Heating, and Filtration

Parameter	S150	S200
Electric heater type	PTC	PTC
Electric heater capacity	80kW	96kW
Humidification type	Wet-film	Wet-film
Humidification capacity	24kg/h	30kg/h
Temperature control range	18-28C	18-28C
Humidity control range	40-75% RH	40-75% RH
Temperature control accuracy	+/-2C	+/-2C
Humidity control accuracy	+/-5% RH	+/-5% RH
Air filter	Initial-efficiency filter	Initial-efficiency filter

Indoor and Outdoor Unit Configuration

Parameter	S150	S200
Indoor evaporator	Copper tube with aluminum fins	Copper tube with aluminum fins
Indoor fan	AC fan	AC fan
Indoor unit dimensions, listed W/D/H sequence	3400 x 2200 x 2500mm	4000 x 2200 x 2700mm
Indoor unit weight	2,400kg	2,800kg
Cabinet panel	Double-layer galvanized steel panel with polyurethane insulation	Double-layer galvanized steel panel with polyurethane insulation
Outdoor condenser	Copper tube with aluminum fins	Copper tube with aluminum fins
Outdoor unit quantity	2	4
Listed outdoor unit weight	300kg	300kg
Outdoor unit dimensions, W/D/H	2100 x 1100 x 1085mm	2100 x 1100 x 1085mm
Air discharge	Top discharge	Top discharge
Gas pipe size	28 x 2mm	28 x 4mm
Liquid pipe size	22 x 2mm	22 x 4mm
Recommended main power cable	3 x 35mm2 + 2 x 10mm2	3 x 35mm2 + 2 x 10mm2
Indoor/outdoor connection cable	3 x 2.5mm2 x 2	3 x 2.5mm2 x 4
Humidifier water inlet pipe	20mm	20mm
Condensate drain pipe	25mm	25mm
Condensate drain pump	0.5kW	0.75kW
Power-off memory	Automatic restart after power restoration	Automatic restart after power restoration

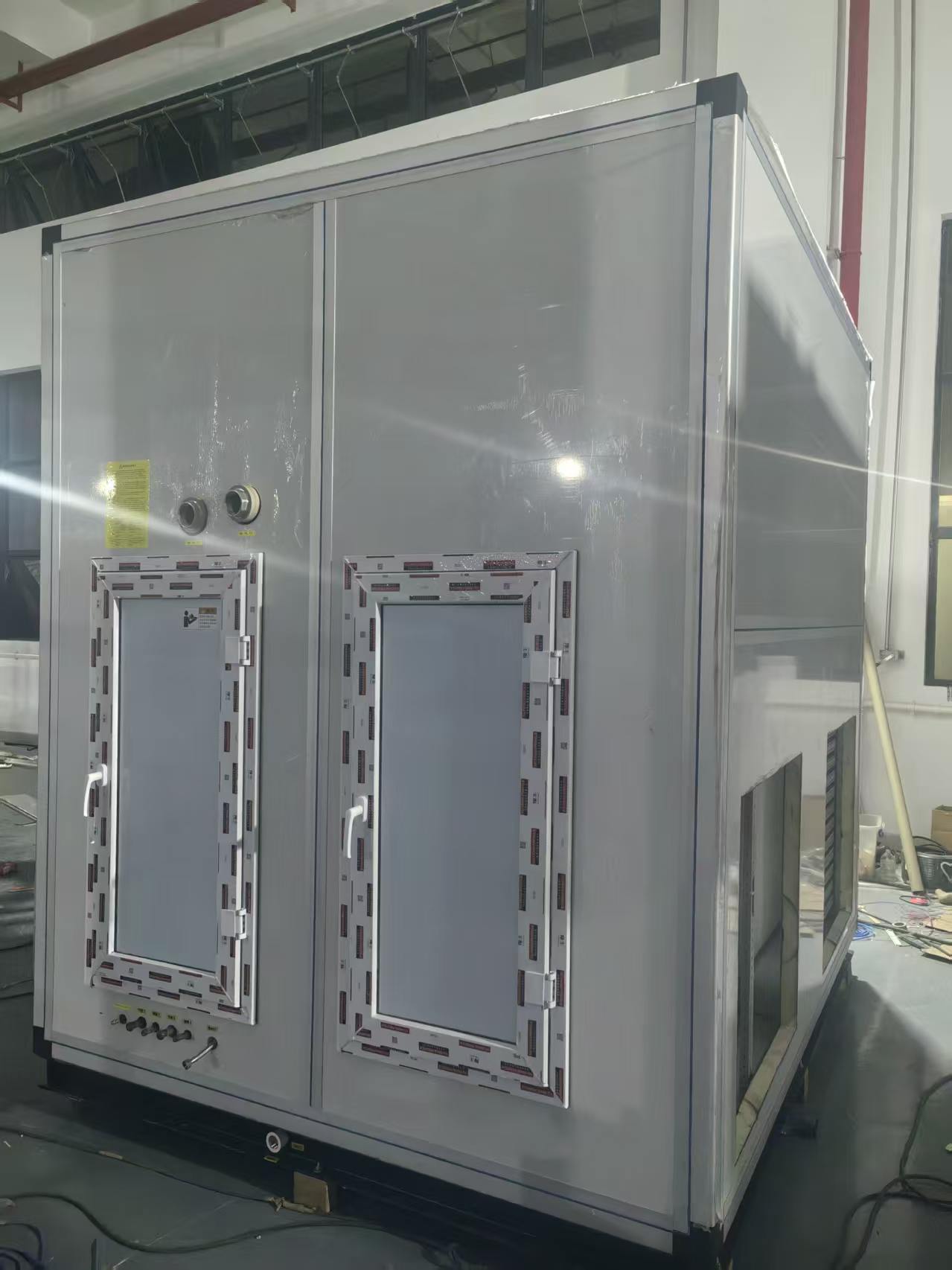

Product Photo

Custom made S150 S200 150kW 200kW Computer Room Precision Air Conditioner with Humidification for Data Centers and Telecom Rooms

Certificate ( CE /ISO )

Custom made S150 S200 150kW 200kW Computer Room Precision Air Conditioner with Humidification for Data Centers and Telecom Rooms

Packing

Custom made S150 S200 150kW 200kW Computer Room Precision Air Conditioner with Humidification for Data Centers and Telecom Rooms

Project Case

Custom made S150 S200 150kW 200kW Computer Room Precision Air Conditioner with Humidification for Data Centers and Telecom Rooms

FAQ

Q1: Who is Zhengzhou Hailos Refrigeration Equipment Co.,ltd?

A1: We are a professional factory specializing in R&D, production and export of precision air conditioners and industrial chillers, located in Zhengzhou, China. We focus on high-precision cooling equipment for data centers, laboratories, laser processing, electroplating, battery factories, medical rooms and industrial production lines. All units are strictly tested before delivery, with complete international certifications for global market sales.

Q2: What is your MOQ (Minimum Order Quantity)?

A2: 1 unit for standard models is acceptable; for customized non-standard machines, MOQ depends on configuration. Distributors with bulk orders get extra factory discount.

Q3: Do you accept factory inspection?

A3: Yes, warm welcome customers to visit our workshop and test equipment on site. We support live video factory tour if you cannot come to China temporarily.

Q4: Where are Hailos precision air conditioners widely used?

A4: Server data room, communication base station, medical lab, testing laboratory, battery workshop, optical equipment room, clean room, electronic manufacturing workshop, industrial control cabinet cooling.

Q5: Can precision air conditioner work all year round without shutdown?

A5: Yes. Our precision cooling units adopt heavy-duty scroll compressor, EC energy-saving fan and independent control system, designed for 24-hour non-stop operation all year long, low failure rate.

Q6: Can I adjust temperature and humidity remotely?

A6: Standard models support Modbus communication to connect with monitoring system; optional WiFi remote control module for mobile phone real-time parameter checking, alarm reminder and parameter modification.

Q7: What refrigerants do you use for precision AC?

A7: Mainly eco-friendly R410A, R134a; we can replace with R32, R290 low-GWP refrigerants to meet local environmental regulations in your country.

Q8: Do you support OEM / ODM customized service?

A8: Yes, full OEM & ODM service available: custom unit size, voltage (380V/220V/415V 50/60Hz), brand logo, control panel language (English, Spanish, Russian, Vietnamese), special refrigerant, remote monitoring system, cabinet color. We can design new model drawing based on your working conditions.
